Home
Products
Drilling

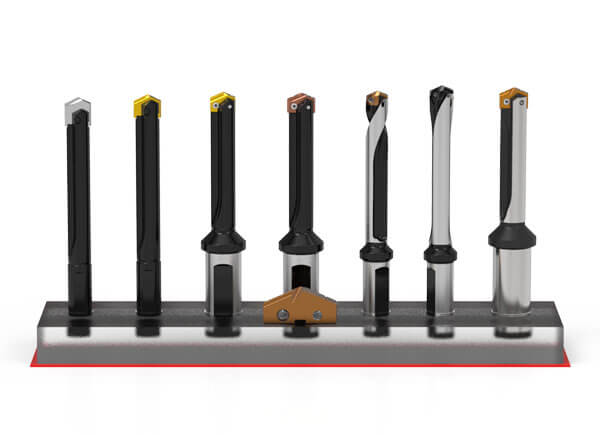

Replaceable Insert Drills
Reduce costs and decrease setup and downtime with efficient tool changeover by replacing inserts rather than entire tools.

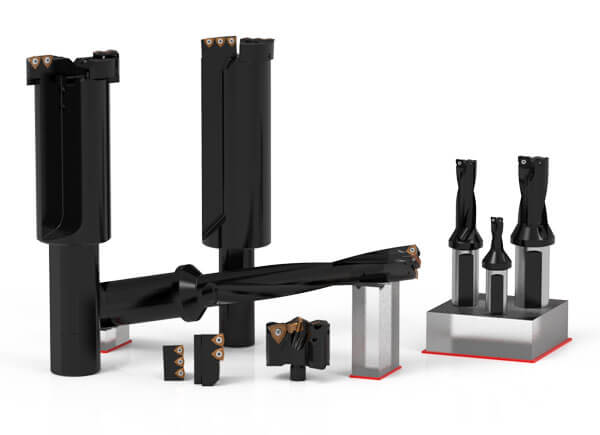

Indexable Insert Drills
Improve production time and increase tool life by simply rotating indexable carbide (IC) inserts when one edge begins to wear.
Solid Carbide Drills
Application-specific solutions tailored to meet the toughest demands of unique drilling applications.
PCD Drills
Consistently produce high quality, reamer like holes with carbide bodies tipped with PCD cutting edges.
Porting Tools
Achieve maximum performance in a diverse range of hydraulic port cutting applications and demanding manufacturing environments.

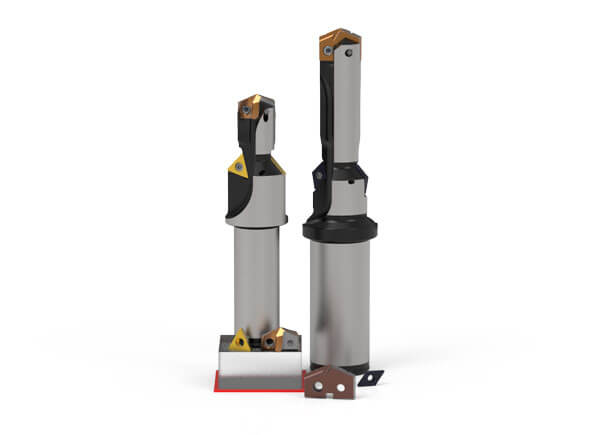

Drill Chamfer Tools
Combine drilling and chamfering operations for added flexibility from a single drill body without compromising on performance.
Structural Steel Solutions
Designed for maximum performance in structural steel materials and applications with multiple geometries and coatings available.
BTA Deep Hole Drilling
Conquer deep hole applications with the BT-A drill's internal ejection system and specific BT geometry for increased productivity.

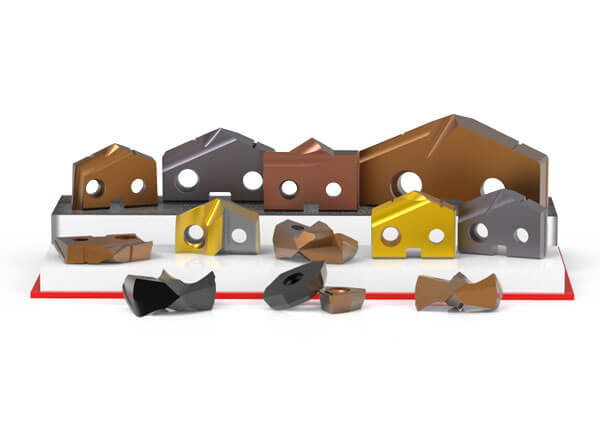

Insert Geometries
Wide range of geometries for replaceable insert and indexable carbide drills optimizing chip control, material-specific performance, and extended tool life.

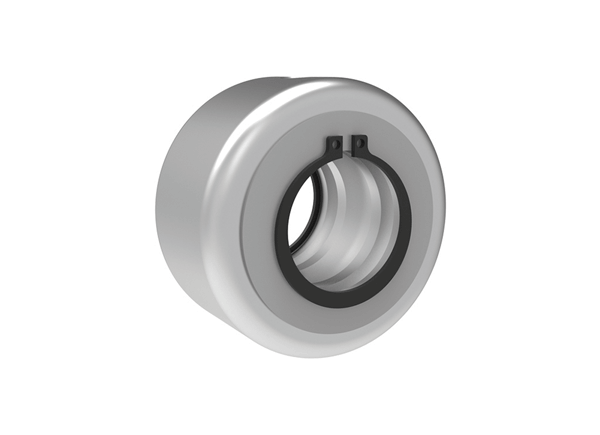

Drilling Accessories
Add-ons that help enhance drilling performance by optimizing tool life and efficiency across a variety of drilling applications.

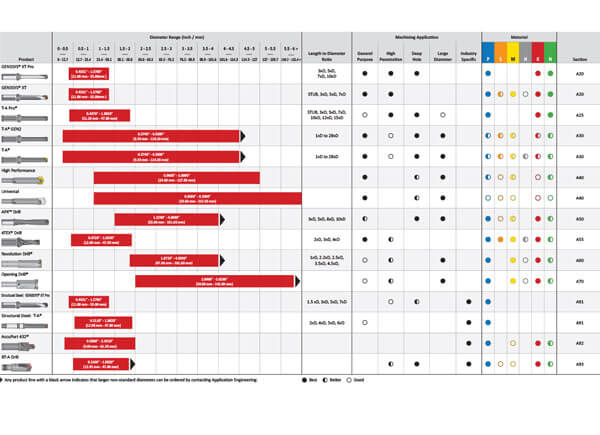

Drilling Selection Guide
Find the ideal drilling solution that meets your application requirements.
