High Performance

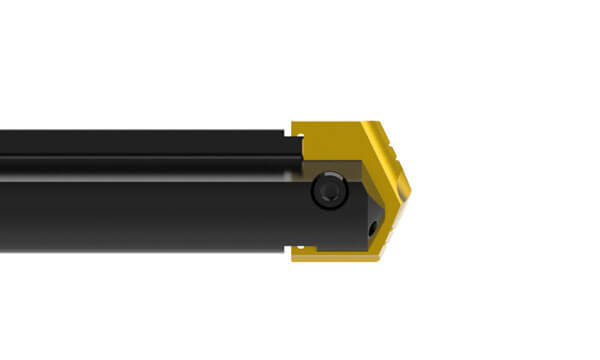

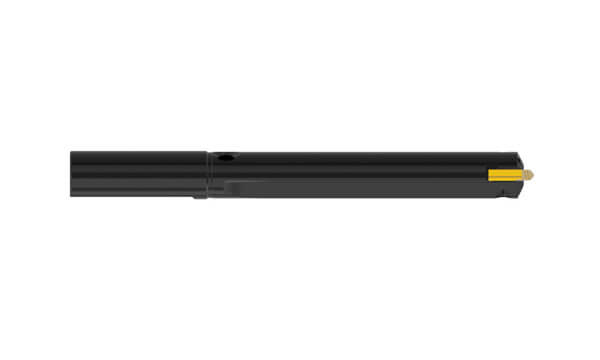

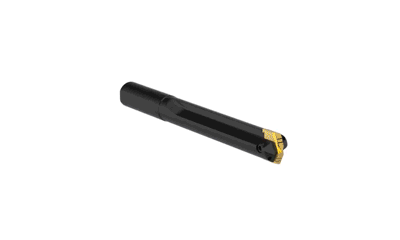

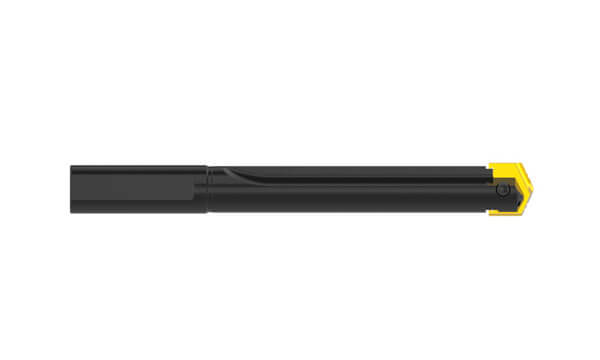

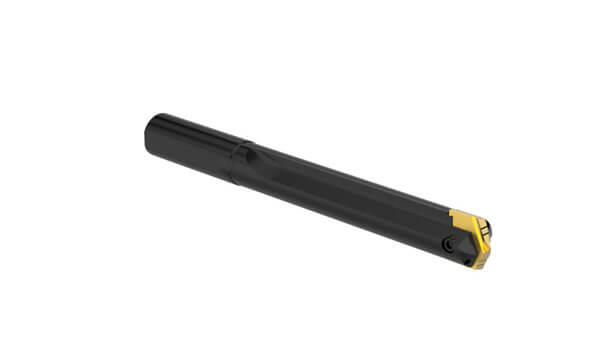

High Performance spade drills (HP) were designed for end users who had Universal style holders but were looking for improved performance. HP spade drills fit into the Universal holders but offer the high-tech geometry and performance benefits of the T-A® drill inserts.
Advantages
- Unique tool geometry reduces thrust up to 30% when compared to uncoated Universal style spade drills
- Increased tool life when compared to uncoated Universal style spade drills
- Reduced tool cost
Features

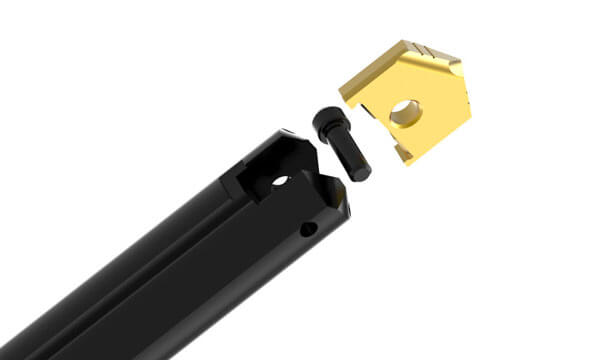

- Single-piece design in A-C series
- Two-piece design in D-H series
- TiN, TiCN, TiAlN coatings
- Web thin geometry
Technical Information
Product Specifications
Product Type
Replaceable Drill Insert
Diameter Range
0.9688" - 5.0000" (24.6 mm - 127 mm)
Insert Material
High-Speed Steel
Coating
TiN, TiAlN, TiCN
Holder
Universal
Flute Options
Straight
Shank Options
Straight, Taper
Depth of Cut
Stub, Short, Standard, Long, XL
Coolant
Coolant, No Coolant, Through-Shank Coolant
Product Nomenclature
High Performance Insert Nomenclature
Spade Drill Insert
x
1 = Spade Drill Insert
1
Material
x
02 = High speed steel
02
Series
x
1 = A series
2 = B series
3 = C series
4 = D series
5 = E series
6 = F series
7 = G series
8 = H series
2 = B series
3 = C series
4 = D series
5 = E series
6 = F series
7 = G series
8 = H series
8
Coating
x
T = TiN
A = TiAlN
N = TiCN
A = TiAlN
N = TiCN
T
-
Diameter (by 1/32")
x
0406 = Inch
4.3593 = Decimal
4.3593 = Decimal
0406
High Performance Holder Nomenclature
Spade Drill Holder
x
2 = Spade Drill Holder
2
Classification
x
Straight Shank
02 = Stub #125 (NC)
04 = Short #150 (NC)
06 = Short #100 (C)
08 = Standard #200 (C)
10 = Long #250 (C)
02 = Stub #125 (NC)
04 = Short #150 (NC)
06 = Short #100 (C)
08 = Standard #200 (C)
10 = Long #250 (C)
Taper Shank
14 = Short #300 (NC)
15 = Short #300 (TSC)
16 = Short #400 (C)
18 = Standard #500 (C)
20 = Long #600 (C)
22 = XL #700 SR (C)
14 = Short #300 (NC)
15 = Short #300 (TSC)
16 = Short #400 (C)
18 = Standard #500 (C)
20 = Long #600 (C)
22 = XL #700 SR (C)
50 NMTB Shank
24 = Short #300 (NC)
26 = Short #400 (C)
28 = Standard #500 (C)
24 = Short #300 (NC)
26 = Short #400 (C)
28 = Standard #500 (C)
22
Series
x
1 = A series
2 = B series
3 = C series
4 = D series
5 = E series
6 = F series
7 = G series
8 = H series
2 = B series
3 = C series
4 = D series
5 = E series
6 = F series
7 = G series
8 = H series
8
Holder Style
x
1 = Universal
1
-
Shank Size and Configuration
x
Straight Shank
0750 = 0.750" Straight Shank
1000 = 1.000" Straight Shank
1250 = 1.250" Straight Shank
1500 = 1.500" Straight Shank
2000 = 2.000" Straight Shank
3000 = 3.000" Straight Shank
0750 = 0.750" Straight Shank
1000 = 1.000" Straight Shank
1250 = 1.250" Straight Shank
1500 = 1.500" Straight Shank
2000 = 2.000" Straight Shank
3000 = 3.000" Straight Shank
Taper Shank
0002 = #2 Morse Taper Shank
0003 = #3 Morse Taper Shank
0004 = #4 Morse Taper Shank
0005 = #5 Morse Taper Shank
0006 = #6 Morse Taper Shank
0002 = #2 Morse Taper Shank
0003 = #3 Morse Taper Shank
0004 = #4 Morse Taper Shank
0005 = #5 Morse Taper Shank
0006 = #6 Morse Taper Shank
0006
Replaceable Insert Drilling
Available Online Only
Recommended Cutting Data
