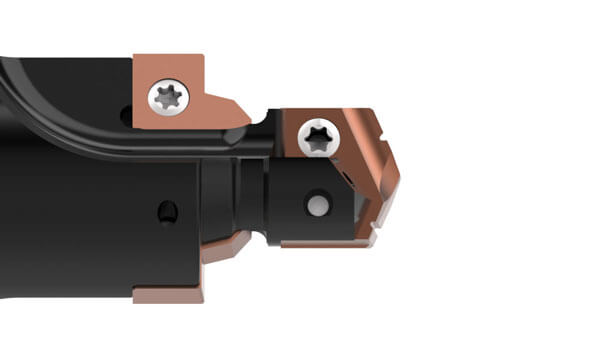

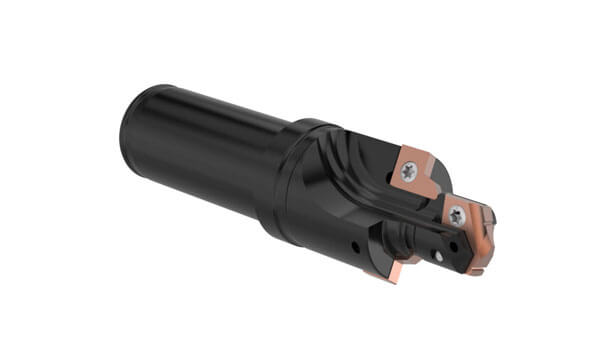

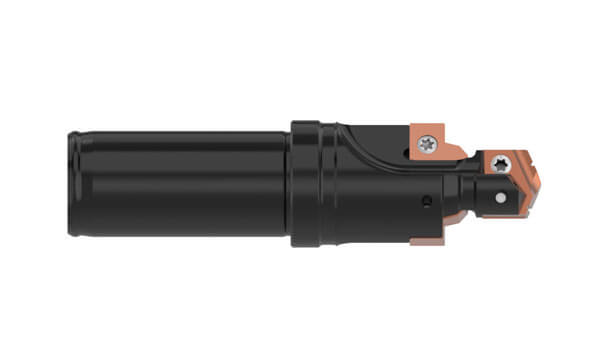

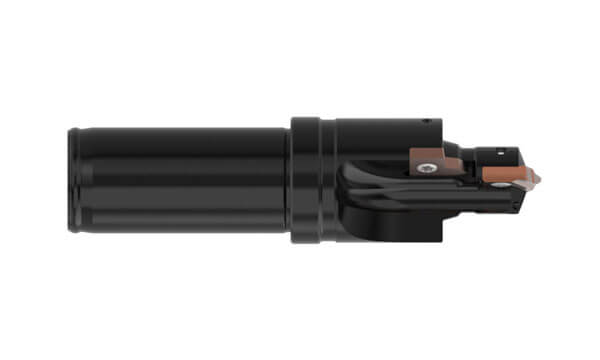

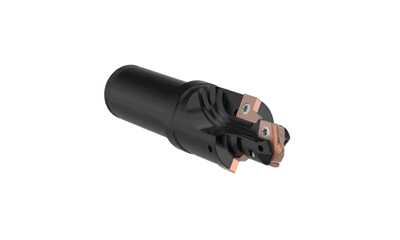

AccuPort 432®
Allied’s revolutionary port hole drilling system performs multiple operations in a single step. The patented design provides excellent repeatability and surface finish while eliminating lost production time due to pre-drilling setups and regrinding.
Advantages
- Excellent repeatability
- Excellent surface finish
- Eliminates the need for pre-drilling
- Eliminates regrinding and resetting
- Improved penetration rates
- Lower cost per hole
- Drill and finish form ports in one operation
Features

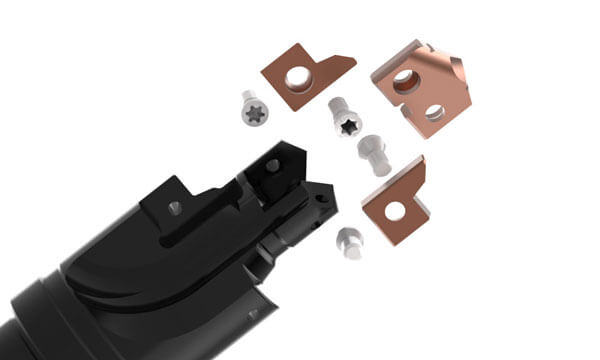

- Replaceable inserts
- SAE J-1926 (ISO 11926-1)
- Metric - ISO 6149 (SAE J-2244-1)
- MilSpec - SAE AS5202 (Formerly MilSpec MS-33649)
- John Deere G173.1
Technical Information
Product Specifications
Product Type
MultiFunctional
Port Range
Size 4 - Size 32
Port Spec Options
J1926, ISO6149, AS5202, JDG173.1
Pilot Inserts
GEN2 T-A®, T-A®
Pilot Insert Material
HSS, Super Cobalt, Premium Cobalt, Carbide C2 (K20), Carbide C5 (P40), Carbide C1 (K35), Carbide C3 (K10)
Pilot Insert Coating
AM200®, TiN
Form Insert Material
Carbide C5 (P40), Carbide C3 (K35)
Form Insert Coating
AM200®, TiAlN
Holder
AccuPort 432® Holder
Shank Options
Imperial and Metric Flange
Coolant
Through Coolant
Product Nomenclature
AccuPort 432 Inserts
Port Specifications
x
J1926 = Imperial
I6149 = Metric (ISO)
G1731 = John Deere
AS5202 = Military
I6149 = Metric (ISO)
G1731 = John Deere
AS5202 = Military
J1926
-
Insert Size
x
02
03
04
05
06
07
08
09
03
04
05
06
07
08
09
10
11
12
14
16
20
24
32
11
12
14
16
20
24
32
02
Port Specifications
x
Blank = No ID ridge
R = ID ridge
R = ID ridge
R
-
Substrate
x
C5 = C5 carbide
C3 = C3 carbide
C3 = C3 carbide
C5
Coating
x
A = TiAlN
H = AM200®
H = AM200®
A
AccuPort 432 Holder
Port Specifications
x
J1926 = Imperial - J1926-1
X1926 = Imperial - J1926 - 1 (extended minor length)
I6149 = Metric (ISO) - 6149-1
G1731 = John Deere - G173.1
AS5202 = Military - AS5202
X1926 = Imperial - J1926 - 1 (extended minor length)
I6149 = Metric (ISO) - 6149-1
G1731 = John Deere - G173.1
AS5202 = Military - AS5202
J1926
-
Port Tube Dash No.
x
04
05
06
08
10
12
05
06
08
10
12
14
16
18
20
24
32
16
18
20
24
32
04
T-A® Insert Series
x
Y = Y series
Z = Z series
0 = 0 series
1 = 1 series
2 = 2 series
3 = 3 series
4 = 4 series
Z = Z series
0 = 0 series
1 = 1 series
2 = 2 series
3 = 3 series
4 = 4 series
Y
-
Shank Configuration
x
Imperial
063F = 5/8" flanged
075F = 3/4" flanged
100F = 1" flanged
125F = 1-1/4" flanged
150F = 1-1/2" flanged
063F = 5/8" flanged
075F = 3/4" flanged
100F = 1" flanged
125F = 1-1/4" flanged
150F = 1-1/2" flanged
Metric
16FM = 16mm flanged
20FM = 20mm flanged
25FM = 25mm flanged
32FM = 32mm flanged
16FM = 16mm flanged
20FM = 20mm flanged
25FM = 25mm flanged
32FM = 32mm flanged
063F
