Universal

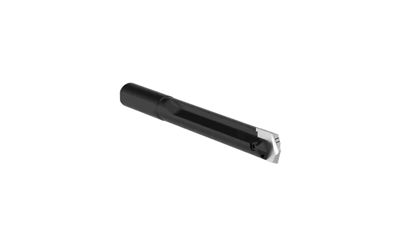

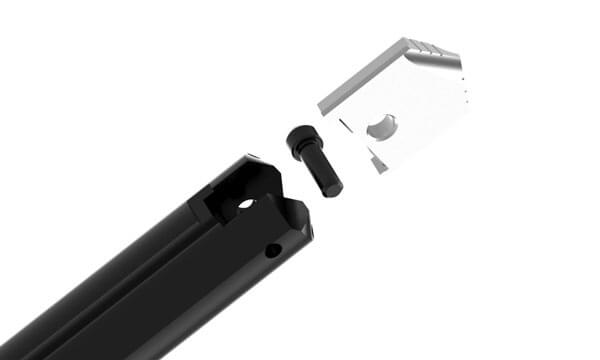

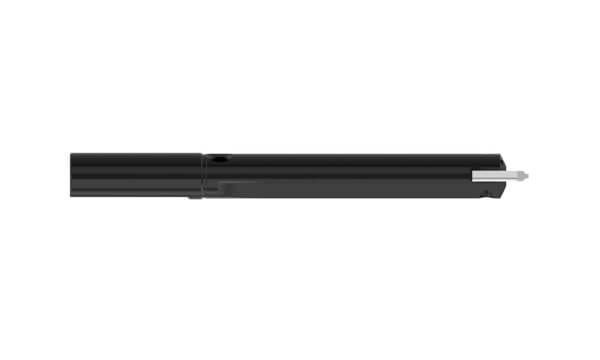

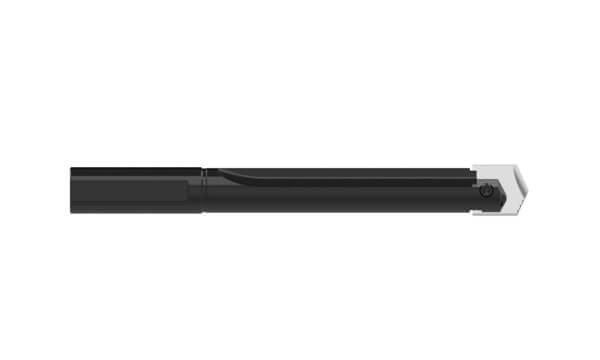

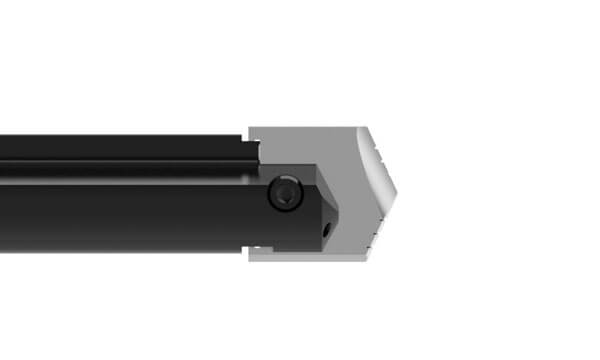

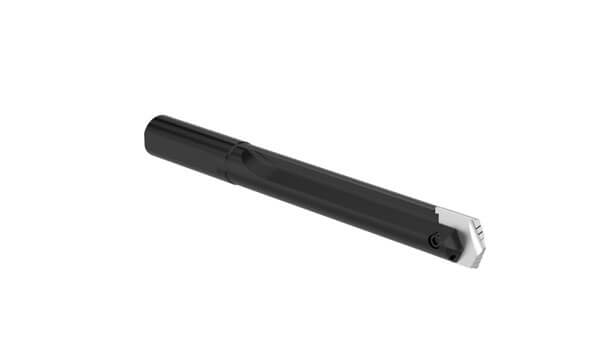

Universal style spade drills and Universal holders allow end users to have a large diameter range. The diameter size for the Universal spade drill ranges from 1" to 8-1/2".
Advantages
- Accommodate a wide range of diameters
- 3 geometries: 130° for standard drilling, 90° spot/chamfer, and flat bottom
Features
- Holders and inserts manufactured to ANSI spec
Technical Information
Product Specifications
Product Type
Replaceable Drill Insert
Diameter Range
0.9688" - 8.5000" (24.6 mm - 215.9 mm)
Insert Material
High-Speed Steel
Coating
TiN, TiAlN, TiCN
Holder
Universal
Flute Options
Straight
Shank Options
Straight, Taper
Drill Depth
Stub, Short, Standard, Long, XL
Coolant
Coolant, No Coolant, Through-Shank Coolant
Product Nomenclature
Universal Spade Drill Inserts
Spade Drill Insert
x
1 = Spade drill insert
1
Insert Style
x
02 = 130° Spade
04 = Flat Bottom
12 = 90° Spot and Chamfer
04 = Flat Bottom
12 = 90° Spot and Chamfer
02
Series
x
1 = A series
2 = B series
3 = C series
4 = D series
5 = E series
2 = B series
3 = C series
4 = D series
5 = E series
6 = F series
7 = G series
8 = H1 - H2 series
9 = H3 - H9 series
J = J series
7 = G series
8 = H1 - H2 series
9 = H3 - H9 series
J = J series
8
Material
x
2 = M-2 (J series only)
4 = High speed steel (SPM-M4 HSS)
5 = High speed steel (CPM-T15 HSS)
4 = High speed steel (SPM-M4 HSS)
5 = High speed steel (CPM-T15 HSS)
4
-
Diameter (by 1/32")
x
0406 = Inch
4.3593 = Decimal
4.3593 = Decimal
0406
Coating
x
Blank = Uncoated
T = TiN
A = TiAIN
N = TiCN
T = TiN
A = TiAIN
N = TiCN
T
Universal Holder
Spade Drill Holder
x
2 = Spade Drill Holder
2
Classification
x
Straight Shank
02 = Stub #125 (NC)
04 = Short #150 (NC)
06 = Short #100 (C)
08 = Standard #200 (C)
10 = Long #250 (C)
02 = Stub #125 (NC)
04 = Short #150 (NC)
06 = Short #100 (C)
08 = Standard #200 (C)
10 = Long #250 (C)
Taper Shank
14 = Short #300 (NC)
15 = Short #300 (TSC)
16 = Short #400 (C)
18 = Standard #500 (C)
20 = Long #600 (C)
22 = XL #700 SR (C)
14 = Short #300 (NC)
15 = Short #300 (TSC)
16 = Short #400 (C)
18 = Standard #500 (C)
20 = Long #600 (C)
22 = XL #700 SR (C)
50 NMTB Shank
24 = Short #300 (NC)
26 = Short #400 (C)
28 = Standard #500 (C)
24 = Short #300 (NC)
26 = Short #400 (C)
28 = Standard #500 (C)
22
Series
x
1 = A series
2 = B series
3 = C series
4 = D series
5 = E series
6 = F series
7 = G series
8 = H series
2 = B series
3 = C series
4 = D series
5 = E series
6 = F series
7 = G series
8 = H series
8
Holder Style
x
1 = Universal
1
-
Shank Size and Configuration
x
Straight Shank
0750 = 0.750" Straight Shank
1000 = 1.000" Straight Shank
1250 = 1.250" Straight Shank
1500 = 1.500" Straight Shank
2000 = 2.000" Straight Shank
3000 = 3.000" Straight Shank
0750 = 0.750" Straight Shank
1000 = 1.000" Straight Shank
1250 = 1.250" Straight Shank
1500 = 1.500" Straight Shank
2000 = 2.000" Straight Shank
3000 = 3.000" Straight Shank
Taper Shank
0002 = #2 Morse Taper Shank
0003 = #3 Morse Taper Shank
0004 = #4 Morse Taper Shank
0005 = #5 Morse Taper Shank
0006 = #6 Morse Taper Shank
0002 = #2 Morse Taper Shank
0003 = #3 Morse Taper Shank
0004 = #4 Morse Taper Shank
0005 = #5 Morse Taper Shank
0006 = #6 Morse Taper Shank
0006
Replaceable Insert Drilling
Available Online Only
Recommended Cutting Data
