Home
Products

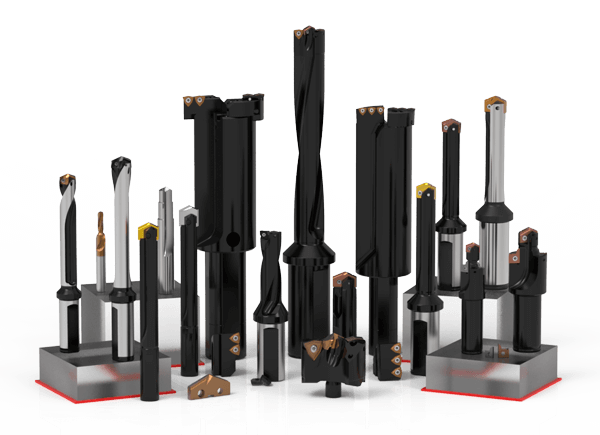

Drilling
The highest performance cutting tools to cover the largest range of drilling applications.

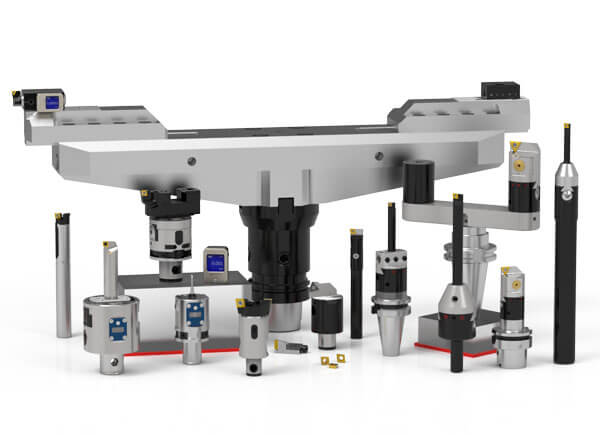

Boring
All your hole finishing applications can be conquered with the Wohlhaupter® and Criterion® product lines.

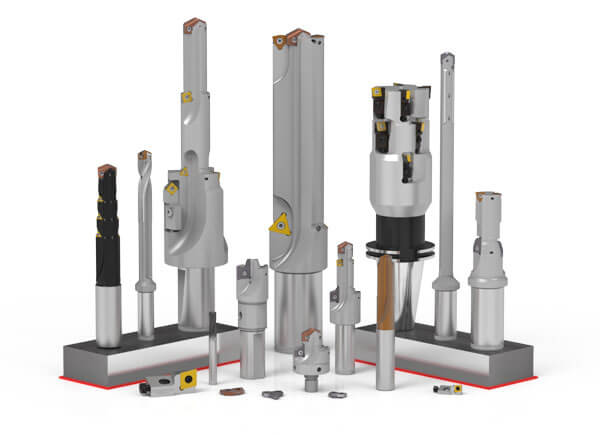

Specials
If your application can't be satisfied with standard tooling, Allied can special engineer any product for your solution.

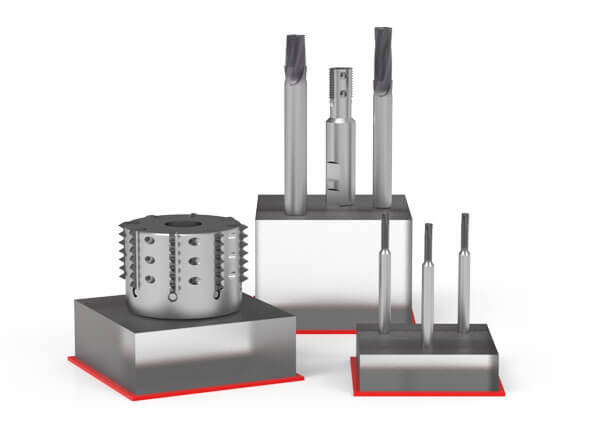

Threading
Achieve precise thread forms with a large variety of thread mills through the AccuThread® and ThreadMills USA™ product lines.

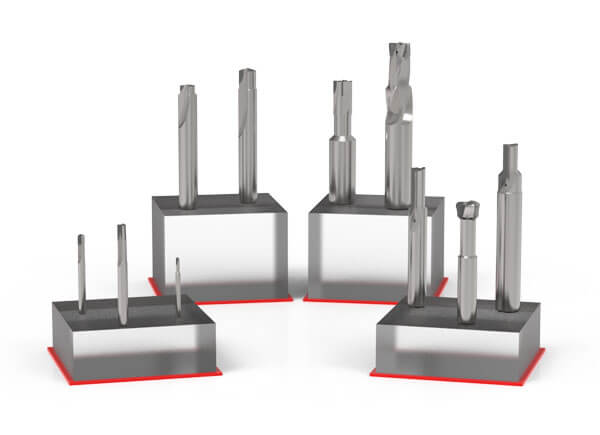

PCD
Superion® offers a full line of custom, application-specific PCD tools, that allow for higher penetration rates and increased tool life in hard to machine applications.

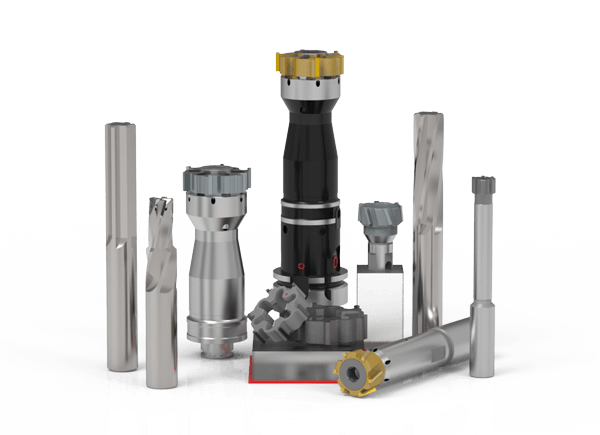

Reaming
Reamers by S.C.A.M.I.® and Superion® provide excellent hole finishes.

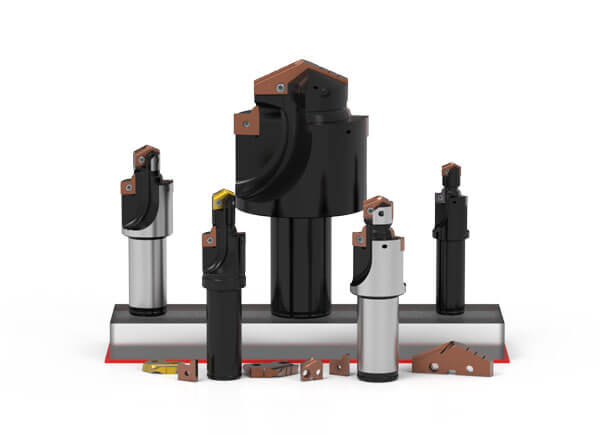

Porting
The AccuPort 432® hydraulic port contour cutters perform 4 processes in one step.

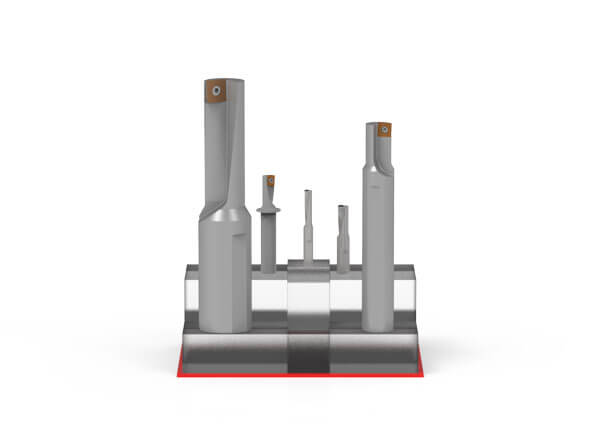

Multifunction
The EcoCut tool performs multiple operations at once, replacing costly processes and lengthy cycle times.

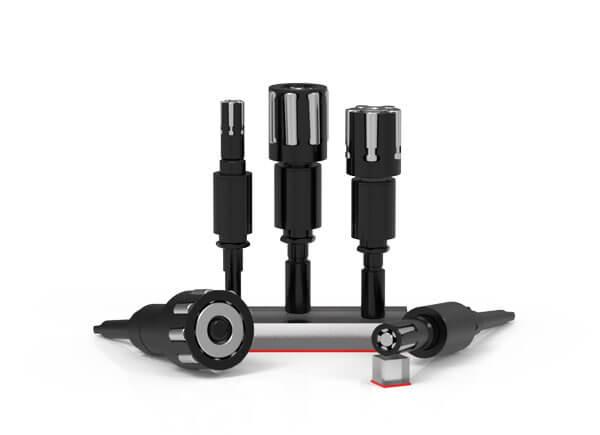

Burnishing
Discover the selection of roller burnishing tools manufactured by S.C.A.M.I.®.

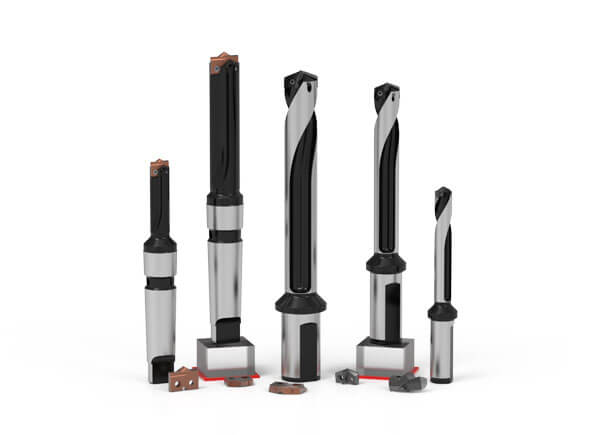

Structural Steel
Options for either T-A® or GEN3SYS® XT product lines maximize performance in difficult-to-machine applications.

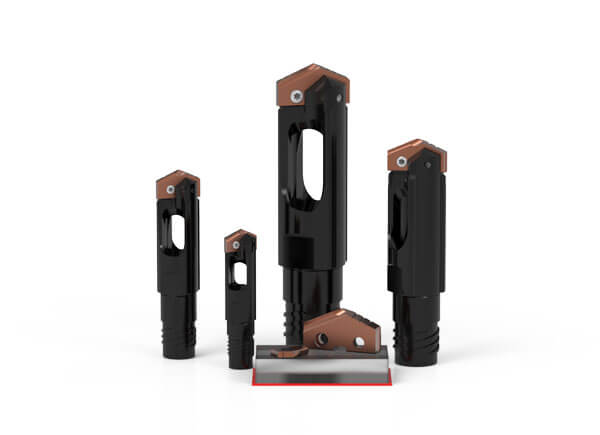

BTA (STS)
Achieve optimal performance in BTA or STS (single-tube system) deep hole applications.
Tool Holding
See our offering of tool holding products ranging from hydraulic tool holders to threaded lathe sleeves.
