Twin Cutters Height Displaced 360 Images Icon

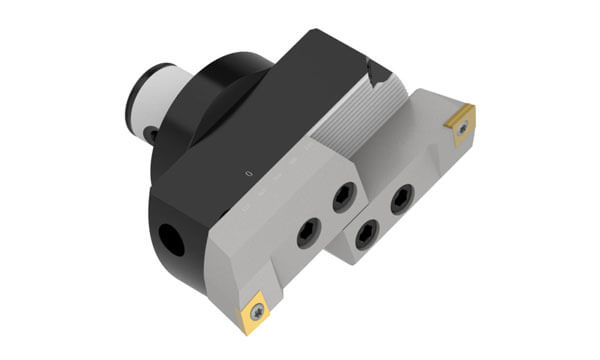

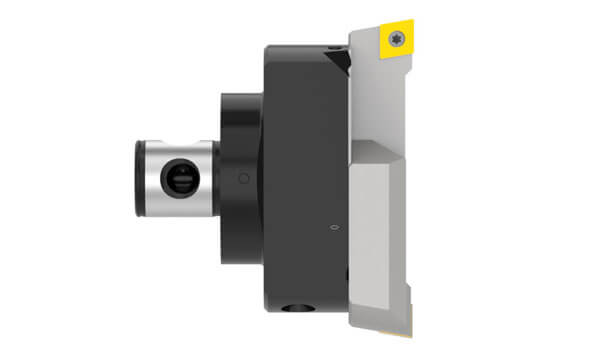

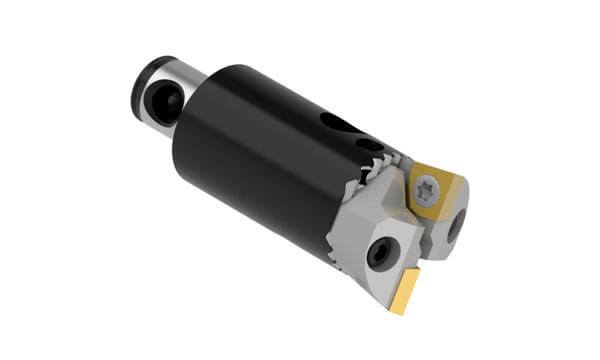

Wohlhaupter® height displaced twin cutter tools offer a large range of cutting diameters. The height displaced twin cutter insert holders are also available for use with large diameter Alu-Line serrated tool bodies and slides found in section G of the Master Wohlhaupter boring catalog (B10-G: 14).

Pre-machine from small to large diameter holes with short processing times and excellent chip control. The replaceable insert holders and inserts reduce setup time while still providing the maximum durability you expect. Inserts can be easily replaced and are available in a wide range of grades and geometries to suit your application needs.

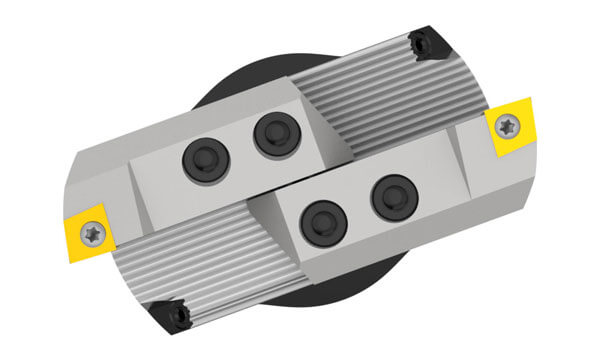

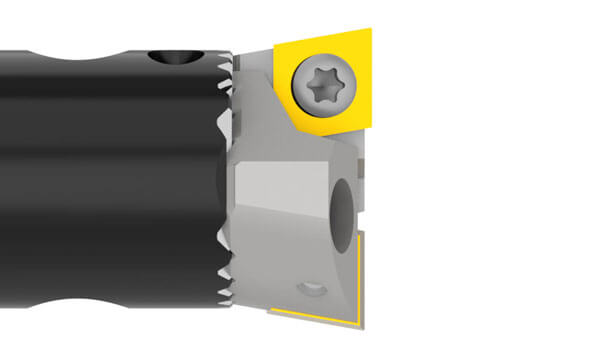

The height displacement provides the ability to offset the insert holders, removing more material. They are also offered in height displaced tangential roughing insert holders for applications with long overhangs or larger cutting depths.
Advantages
  • Offset insert holders for increased material removal
  • Optional tangential insert holders for long overhangs and large cutting depths
  • Serrated tool bodies can be used for multiple applications including rough boring, chamfering, back boring, and axial grooving
Features
  • Diameter range: 1.141" - 8.070" (29.00 mm - 205.00 mm)

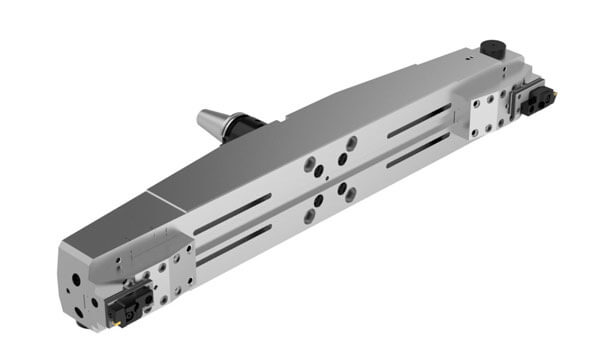

  • Insert holders are also available for use with large diameter Alu-Line serrated tool bodies and slides found in section G of the Master Wohlhaupter boring catalog (B10-G: 14): 7.874" - 128.15" (200.00 mm - 3255.00 mm)
  • Height displacement of 0.028" (0.7 mm) allows for single effective cutting

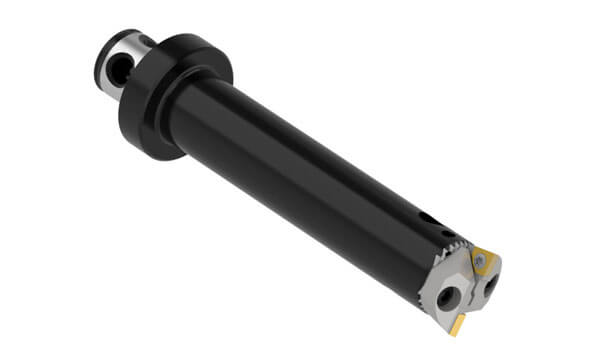

  • Tangential inserts and insert holders also available: 2.086" - 8.070" (53.00 mm - 205.00 mm)
  • Wohlhaupter MVS connection capable of adapting to any machine
  • Coolant through
