BT-A Drill (STS Deep Hole Drilling) 360 Images Icon
The BT-A drill is compatible with standard BTA-STS (Boring Trepanning Association) systems. Double effective cutting allows up to 2x penetration rate over conventional BTA heads.
Advantages
  • Increased penetration rates
  • Replaceable cutting edges
  • Lower cost per hole
  • Improved performance in cross holes
Features
  • Double effective cutting
  • Laser clad bearing area
  • Uses standard BTA-STS tube connection
Contact Engineering Support

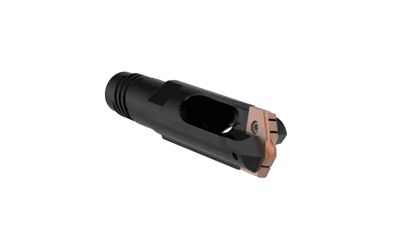

BT-A Drill Rotation
BT-A Drill Rotation

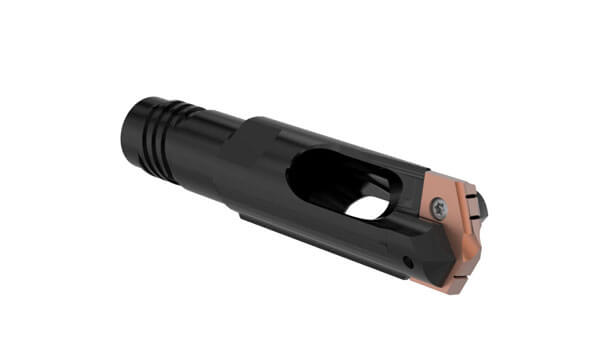

BT-A Drill Angle

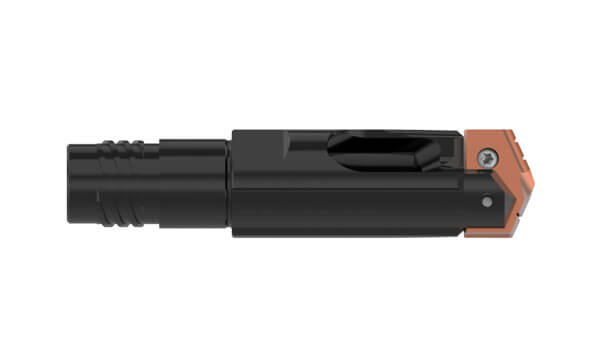

BT-A Drill Front

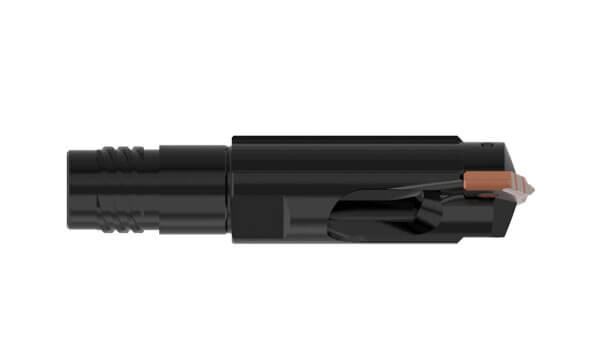

BT-A Drill Side

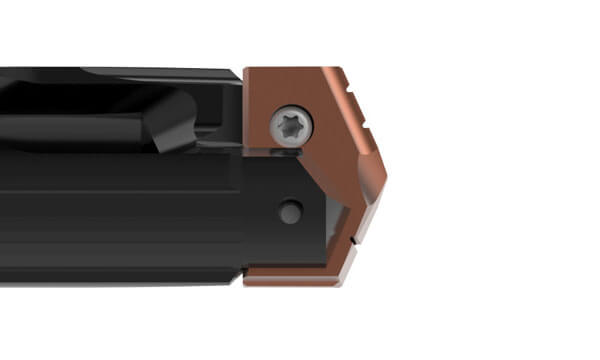

BT-A Drill Close Up

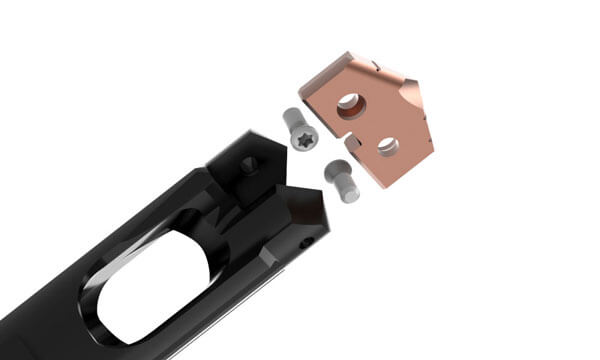

BT-A Drill Explosion
Recommended Materials   KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries   KeyIcon Reference
Aerospace
Agriculture
Automotive
Firearms
General Production
Marine



Technical Information

Product Specifications
Product Type
Replaceable Tip BTA Drill
Diameter Range
0.5100" - 1.8820" (12.95 mm - 47.80 mm)
Coating
AM200®, TiAlN
Insert Material
C1
Holder
BT-A Holder
Tube Options
Standard STS Tubes Available
Coolant
Through Coolant
Product Nomenclature
BT- A Drill Tubes
BT-A Drill T-A Insert Series
x
BTAT = BT-A Tube
BTAT
-
Tube Size
x
794
795
796
797
798
799
800
801
802
803
804
805

806
807
808
809
810
811
804
-
Length
x
63 = Standard
102 = Long
63
BT-A Holder
BT-A Drill T-A Insert Series
x
BTA0 = 0 series T-A insert
BTA1 = 1 series T-A insert
BTA2 = 2 series T-A insert
BTA3 = 3 series T-A insert
BTA2
-
Tube Size
x
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
804
-
Diameter
x
0.7344 = Inch
25.00 = Metric
1.1299
