4TEX Drill Insert Geometry
  • Each insert has two inner cutting edges and two outer cutting edges
  • Economical solution that increases tool life because of the rotation ability of the inserts
  • Available in ISO material-specific geometry/coating combinations
Recommended Materials   KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon

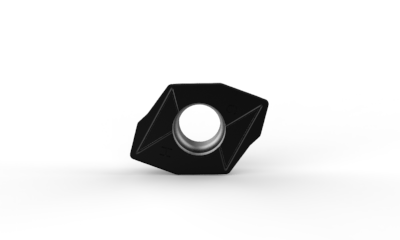

4TEX Drill Insert Rotation
4TEX Drill Insert Rotation

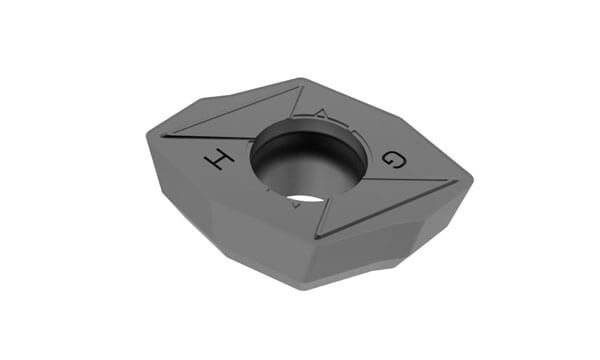

4TEX Drill Insert Angle

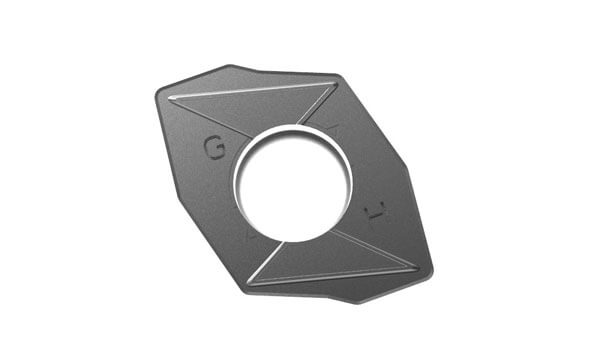

4TEX Drill Insert Top

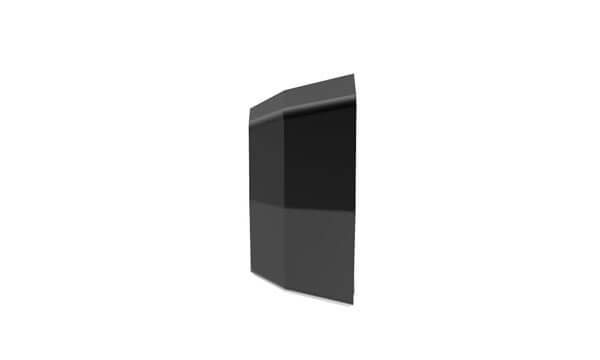

4TEX Drill Insert Side
