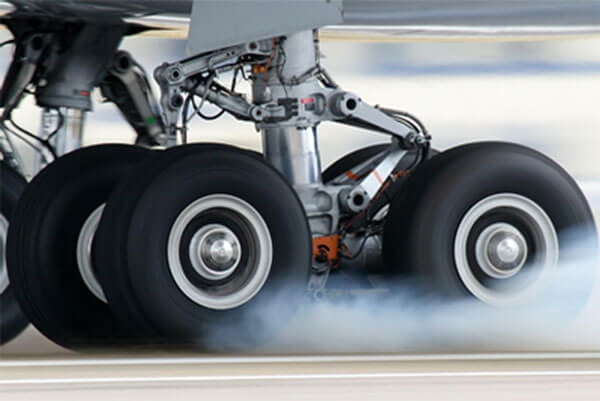

Landing Gear: BT-A
Code
0901
The Challenge
The customer is machining aerospace landing gear made from 4340 alloy steel using a LeBlond Heavy Duty Lathe with 60 GPM (227 LPM) of oil.
The customer needed to improve the process and reduce cost. They asked Allied for a durable solution at a lower price.
The BT-A Drill completed 43 pieces against Sandvik’s disappointing 2 pieces. The BT-A Drill cost was justified after only 15 parts.
| Product: | BT-A |
| Objectives: | Improve process |
| Industry: | Aerospace |
| Part: | Landing Gear |
| Material: | 4340 Alloy steel |
| Hole Ø: | 2.05" (52.07mm) |
| Hole Depth: | 11.0" (279.4mm) |
The Solution
The BT-A Drill
- BT-A Drill head
- T-A insert: #4 series special super cobalt
| Measure | Competitor | BT-A Drill |
|---|---|---|
| RPM | 500 | 125 |
| Feed Rate | 0.003 IPR (0.0762 mm/rev) | 0.006 IPR (0.152 mm/rev) |
| Penetration Rate | 1.5 IPM (38.1 mm/min) | 0.75 IPM (19.05 mm/min) |
| Cycle Time | 15 min | 1 min 20 sec |
| Tool Life | 2 holes | 43 holes |
| BT-A offered 99% cost per hole savings compared to competitor tooling. | ||
The Advantages
The BT-A Drill provided
- 99% cost per hole savings
- Increased tool life
- Decreased cycle time
- Eliminated set-up and deburr time
