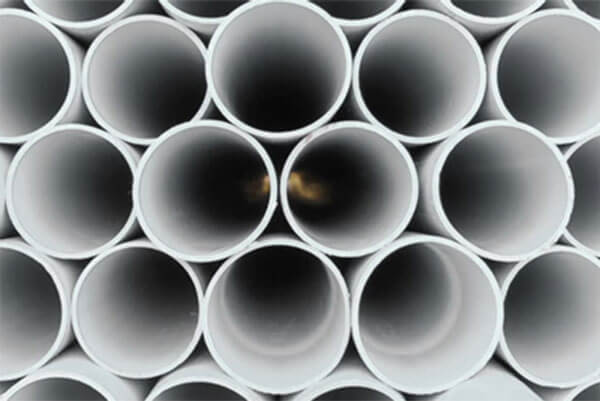

Cylinders: BT-A
Code
0902
The Challenge
The customer machines cylinders made from 1045 steel using a Technidrill BTA machine operating at 900 PSI (62 bar) with semi-synthetic coolant.
The Ingersoll tools had difficulty drilling a straight hole, and the customer produced few parts that had the drill actually come out the side of the cylinder.
The BT-A Drill delivered a much straighter hole with less than 0.010” (0.254 mm) variance in cylinder wall thickness.
| Product: | BT-A |
| Objectives: | Improve process |
| Industry: | General machining |
| Part: | Cylinders |
| Material: | 1045 steel |
| Hole Ø: | 1.375" (34.925mm) |
| Hole Depth: | 17.7" blind hole (449.58mm) |
The Solution
The BT-A Drill
- BT-A Drill head: 1.375" 807 series
- GEN2 T-A insert: 4C12H-0112-HE
| Measure | Competitor | BT-A |
|---|---|---|
| RPM | 800 | 750 |
| Feed Rate | 0.0074 IPR (0.190 mm/rev) | 0.0118 IPR (0.299 mm/rev) |
| Penetration Rate | 5.9 IPM (149.86 mm/min) | 8.85 IPM (224.79 mm/min) |
| Cycle Time | 2 min 43 sec | 1 min 59 sec |
| Tool Life | 750 linear inches (19.05M) | 900 linear inches (22.86M) |
| BT-A offered 15% cost per hole savings compared to competitor tooling. | ||
The Advantages
The BT-A Drill provided:
- 20% tool life increase
- Decreased cycle time
- Decreased cost per hole
