0904
The Challenge
The customer is a mold maker for the plastics industry that contacted Allied to test BTA tooling. The workpiece is a 21” (533.4 mm) thick test block made of P20 material (28-32 Rc). They are using a Schienke Gundrill machine with Hulcut 745D semi-synthetic coolant (10% concentrate) at 1000 PSI (69 bar).
The customer needed to decrease total hole costs and improve the tool life.
The BT-A Drill successfully decreased total hole costs while improving the tool life.
| Product: | BT-A |
| Objective: | Increase tool life |
| Industry: | Tool, mold, & die |
| Part: | Test block |
| Material: | P20 |
| Hole Ø: | 0.734" (18.644mm) |
| Hole Depth: | 21" (533.4mm) |
The Solution

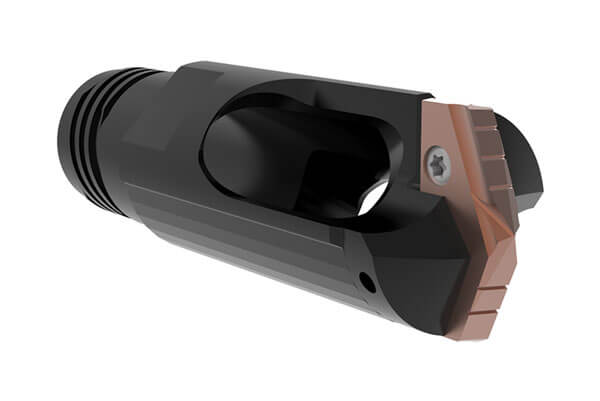

The BT-A Drill
- Special holder: 081021-21
- Special insert: 081021-22
| Measure | Competitor | BT-A |
|---|---|---|
| RPM | 1300 | 1575 |
| Feed Rate | 0.0054 IPR (0.137 mm/rev) | 0.0046 IPR (0.117 mm/rev) |
| Penetration Rate | 7.02 IPM (178.308 mm/min) | 7.23 IPM (183.642 mm/min) |
| Cycle Time | 3 min 10 sec | 3 min 4 sec |
| Tool Life | 19 holes | 39 holes |
| BT-A offered 15% cost per hole savings compared to competitor tooling. | ||
The Advantages
The BT-A Drill provided:
- 105% tool life increase
- Decreased cycle time
- Decreased cost per hole
