Gear Actuator Housing: Original T-A®
Code
1005
The Challenge
A customer manufactures ball screws, aerospace actuators, and landing gear actuators for the aerospace industry. In this application, they are using an Okuma VMC with 750 PSI (51.711 bar) through-tool coolant to machine a gear actuator housing made from cast stainless steel.
Unsatisfied with their current process, the customer needed to increase tool life and reduce the cost of production.
The Original T-A drill achieved the customer’s goals by increasing tool life while lowering the overall cost of production.
| Product: | Original T-A |
| Objective: | Increase tool life |
| Industry: | Aerospace |

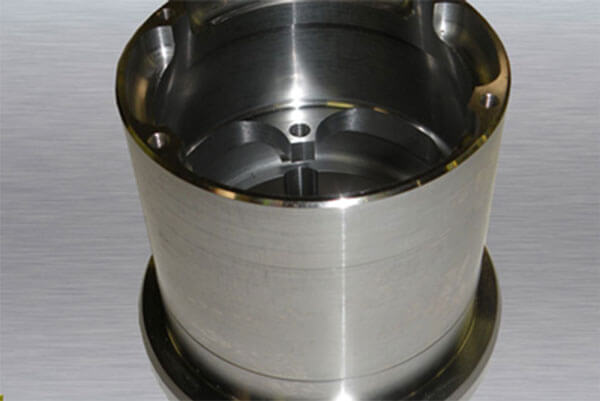

| Part: | Gear actuator housing |
| Material: | Cast stainless steel |
| Hole Ø: | 0.25" (6.35mm) |
| Hole Depth: | 0.703" (17.856mm) |
The Solution

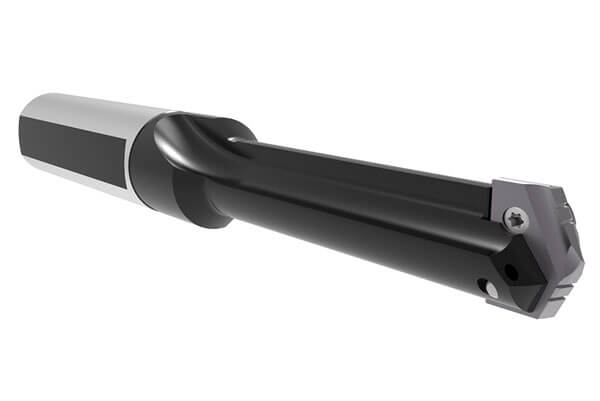

The Original T-A Drill
- Holder: 23010S-100L

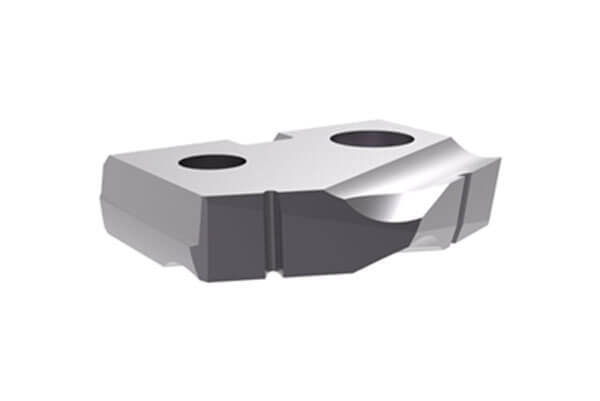

- Insert: 1C51A-.703
| Measure | Competitor | Original T-A |
|---|---|---|
| RPM | 733 | 760 |
| Feed Rate | 0.007 IPR (0.178 mm/rev) | 0.008 IPR (0.203 mm/rev) |
| Penetration Rate | 5.13 IPM (130.302 mm/min) | 6.08 IPM (154.432 mm/min) |
| Cycle Time | 15 sec | 14.5 sec |
| Tool Life | 10 holes | 40 holes |
The Advantages
The Original T-A provided:
- 300% tool life increase
- Decreased cycle time
- Decreased cost
