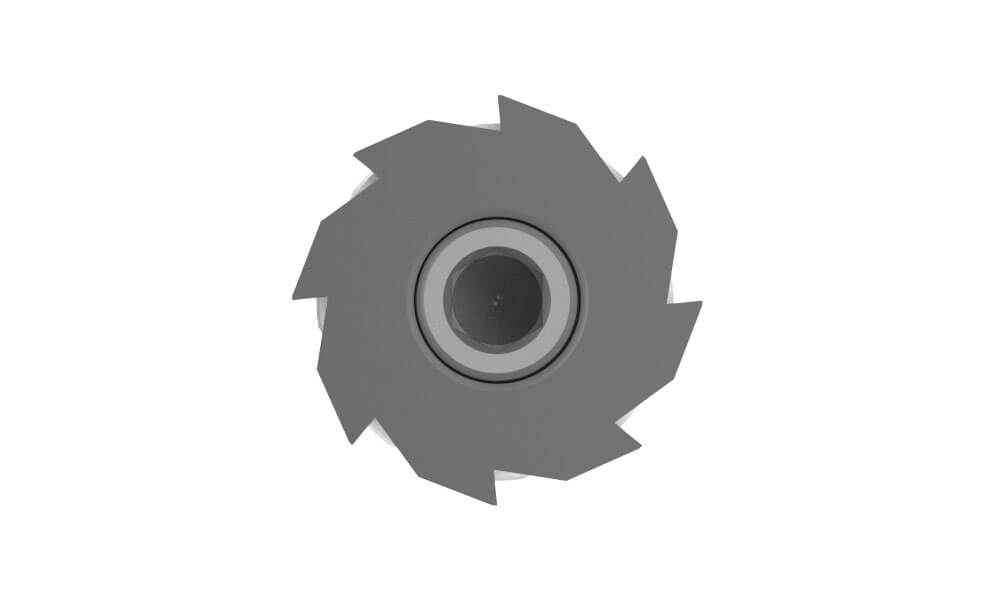

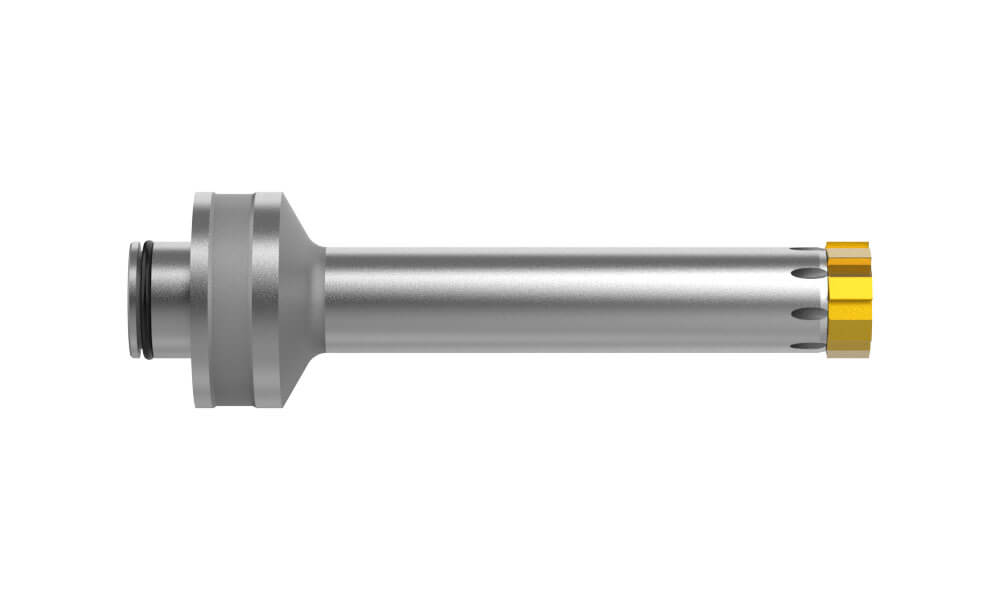

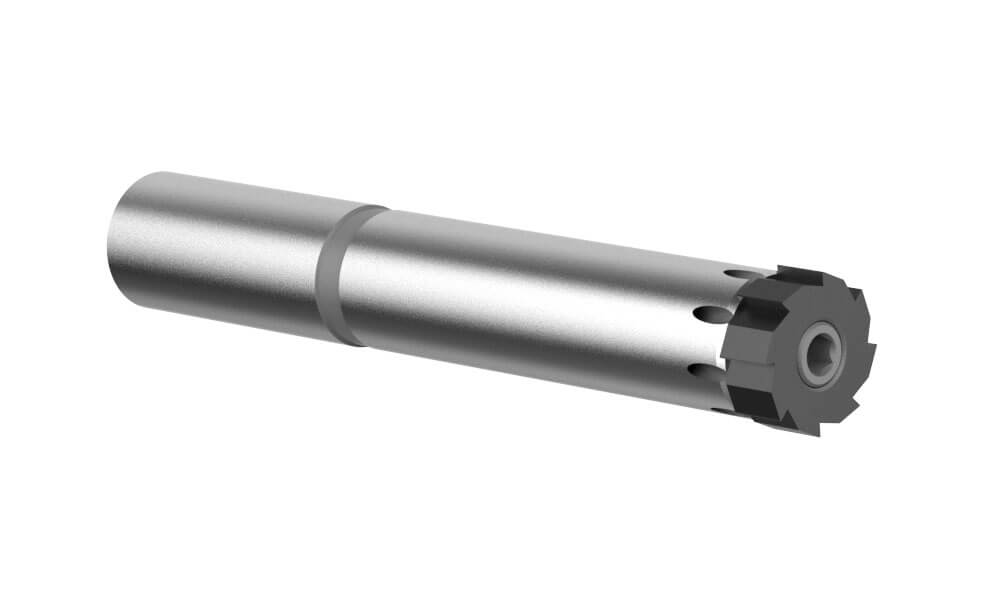

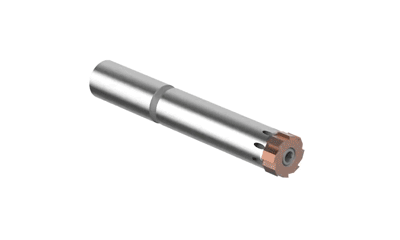

ALVAN® 9000 Series Replaceable Head Reamer
The 9000 series replaceable head reamer is ideal for extremely high-production applications where optimal surface finish, tool life, and penetration rates are required. The quick change (throw away) design allows for reduced downtime for assembling and indexing new heads.
Advantages
- Ø 0.4646" - 1.5984" (11.800 mm - 40.600 mm).
- Quick-change heads for minimal downtime.
- Multiple diameters within the same arbor reduces inventory requirements.
- Sintered carbide or cermet design for improved rigidity.
- Finish ground heads set to desired diameter.
- Excellent repeatability with the replaceable head connection.
- Coolant configurations for blind and through hole applications.
- Improved runout with modular connection.
Features
- Available with brazed carbide or cermet cutting edges.
- H7 tolerance capability.

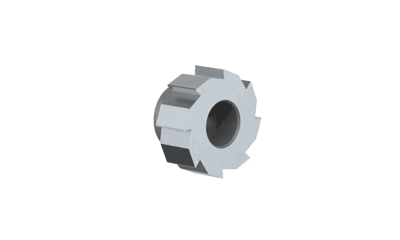

- Replaceable head design.
- Variety of edge geometries designed for multiple materials.
- Modular or cylindrical shank.
- Axial or radial coolant configuration.
Technical Information
Product Nomenclature
9000 Series Replaceable Head
Diameter Unit
x
Blank = mm
I = inch
I = inch
I
Series
x
9400
9600
9700
9600
9700
9400
-
Substrate
x
K = Carbide
S = Cermet
S = Cermet
K
Coating
x
L = Uncoated carbide
V = Uncoated cermet
N = TiN
C = TiCN
A = TiAlN
K = Alcrona
H = Hardcut
R = R coating
T = T coating
V = Uncoated cermet
N = TiN
C = TiCN
A = TiAlN
K = Alcrona
H = Hardcut
R = R coating
T = T coating
N
Lead-in
x
E
M
A
F
G
L
N
T
V
K
M
A
F
G
L
N
T
V
K
G
Optional Add-on
x
Blank = No add-on
H = Half circular face
Z = Double back taper
HZ = Half circular face and double back taper
H = Half circular face
Z = Double back taper
HZ = Half circular face and double back taper
H
-
Diameter
x
XXXXX = X.XXXX"
XXXXX = XX.XXX mm
XXXXX = XX.XXX mm
10000
+
Tolerance*
x
XXXX = 0.XXXX"
XXX = 0.XXX mm
*The total tolerance capable for 9000 series is H7.
XXX = 0.XXX mm
*The total tolerance capable for 9000 series is H7.
0008-0000
ALVAN Reamers
Available Online Only
Recommended Cutting Data
Setup / Assembly Information

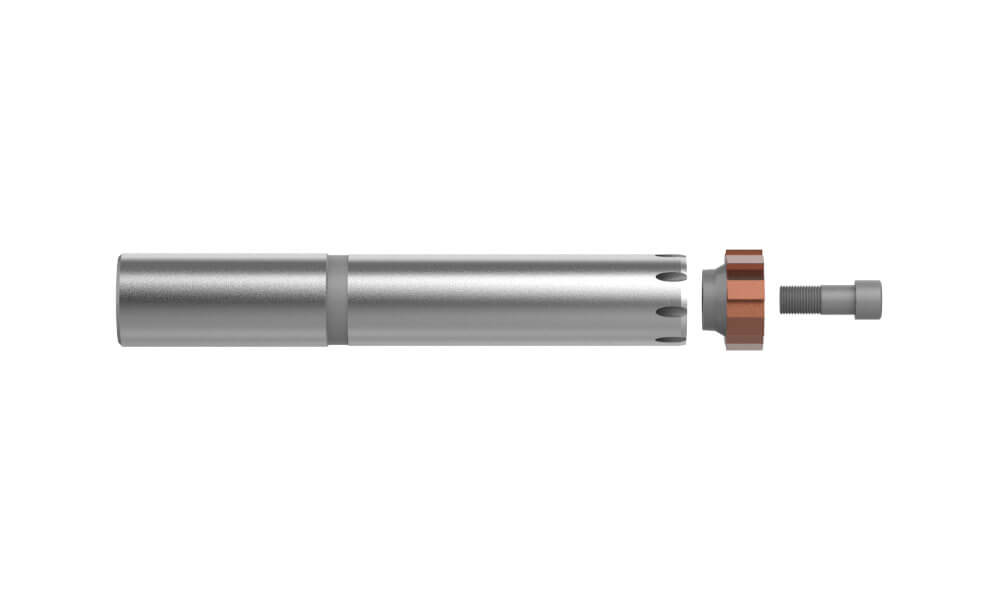

How to assemble 9000 series ALVAN® reamers
